-- Item No. KS-Q240G
-- Maximum Power (Pm) :3W
-- Operating Voltage (Vmp):9V
-- Operating Current (Imp) :330mA
-- Dimension: Φ240mm, thinkness:4.5mm
-- Type:Monocrystalline silicon solar cell
-- Power Tolerance:±5%
-- Encapsulation Methods:
Tempered glass laminating
-- Test condition: 1kW/sqm, AM1.5, 25 degrees centigrade
-- Warranty: nominal power keep more than 90% in 10 years |

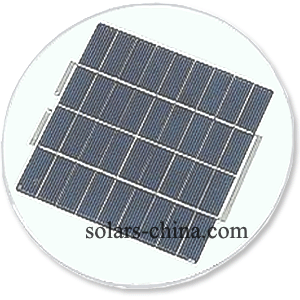

Tempered glass laminating solar panel
| Configuration Relationships between solar panel and Batteries |
| Batteries |
Solar Panel |
1.2V |
1.8V~2V |
1.5V |
2.2V-2.5V |
2.4V |
3.6V~4V |
3.6V |
5.5V-6V |
6V |
9V |
9V |
12V-13.5V |
12V |
17.2~18V |
|
