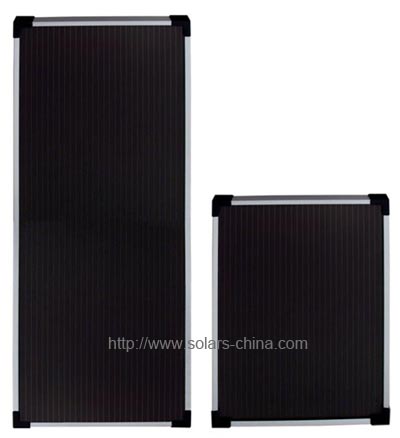

25W Amorphous silicon
solar module
(Item No:KS-A25W) |
Performance parameter
-- Peak Power (Pm) ： 25W
-- Working Voltage (Vop):18V
-- Working Current (Iop): 1388mA
-- Open Circuit Voltage (Voc) : 27V
-- Short Circuit Current (Isc) : 1665mA
-- Solar cell type: a-Si thin film solar panel
-- Standard testing condition: AM 1.5,1000W/ s.q M., 25 degrees.
-- Warranty: 90% output for 10 years, 80% output for 20 years
Solar Panels Dimension: 1275*385*26mm (L*W*H)
Packing
-- Each solar module packed in an inner carton, ten pieces per outer carton
-- Dimension of outer-packing carton: 41*36*128cm
-- Gross weight of outer carton: 60kgs, Net weight: 56 kgs.
|
| Parameters |
Rating |
| Operation temperature |
-40 to + 85 º C |
| Storage temperature |
-40 to + 85 º C |
| Humidity & temperature Test |
85℃ &85& humidity 1000h |
| Outstanding performance under low light irradiance |
| Temperation coefficients: |
Current temperature coefficient |
α(1sc) |
(0.08±0.02)%/℃ |
Voltage temperature coefficient |
β(Voc) |
-(0.34±0.04)%/℃ |
Power temperature coefficient |
Υ(Wp) |
-(0.19±0.03)%/℃ |
| Michanical Specifications: |
junction box |
ABS material |
Frame |
Silver anodized aluminum |
Output Lead Wire |
Waterproof wire and connector |
|
