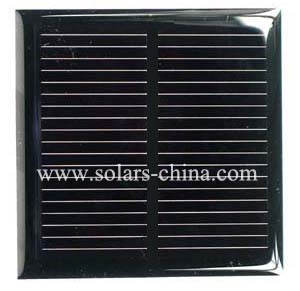

4V 100mA OEM Solar Module
|
-- Item No. KS-M6060
-- Maximum Power (Pm) :0.4W
-- Operating Voltage (Vmp):4V
-- Operating Current (Imp) :100mA
-- Power Tolerance:±5%
-- Dimension:60*60*3mm
-- Type:Monocrystalline silicon solar cell
-- Sealed Tech : Encapsulated with epoxy resin |
Encapsulated with Epoxy Resin
| Configuration Relationships between solar panel and Batteries |
| Batteries |
Solar Panel |
1.2V |
1.8V~2V |
1.5V |
2.2V-2.5V |
2.4V |
3.6V~4V |
3.6V |
5.5V-6V |
6V |
9V |
9V |
12V-13.5V |
12V |
17.2~18V |
|
