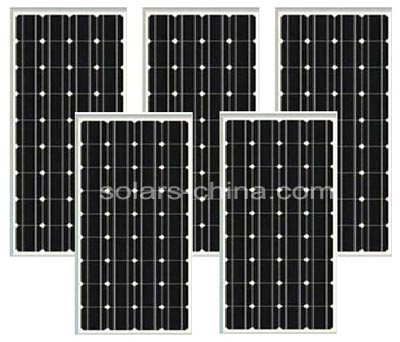

Monocrystalline silicon
solar module
Product Features:
-- Applies to commercial, residential and utility scale applications
-- Easily installed ground, roof, building face or tracking system
-- Smart choice for on-grid PV system applications
-- Reduces electricity bill and creates energy independence
-- Modular, no moving parts, fully scalable and easily installed
-- Reliable and virtually maintenance-free power generation
-- Helps environment by reducing air, water and land pollution
-- Provides clean, quiet and reliable electricity generation
-- Lightweight and pre-drilled mounting holes for easy installation ;
-- Water-resistant junction box ;
-- Torsion and corrosion-resistant anodized frame ensures dependable performance, even through harsh weather conditions. |
Monocrystalline silicon
solar module specification
Item No |
Pm
(W) |
Vm
(V) |
Im
(A) |
Voc
(V) |
Isc
(A) |
Size
(mm) |
Weight
(KG) |
|
3 |
18 |
0.16 |
21.6 |
0.2 |
215*135*17 |
0.5 |
KS-M5W |
5 |
18 |
0.27 |
21.6 |
0.28 |
290*180*17 |
0.7 |
KS-M10W |
10 |
18 |
0.55 |
21.6 |
0.58 |
350*280*17 |
1.2 |
KS-M15W |
15 |
18 |
0.83 |
21.6 |
0.88 |
400*350*25
|
2.6 |
KS-M20W |
20 |
18 |
1.11 |
21.6 |
1.18 |
530*350*25 |
2.6 |
KS-M25W |
25 |
18 |
1.38 |
21.6 |
1.47 |
540*420*25 |
3.4 |
KS-M30W |
30 |
18 |
1.66 |
21.6 |
1.77 |
540*420*25 |
4.8 |
KS-M35W |
35 |
18 |
1.94 |
21.6 |
2.07 |
520*520*25 |
4.8 |
KS-M40W |
40 |
18 |
2.22 |
21.6 |
2.37 |
530*670*25 |
4.8 |
KS-M50W |
50 |
18 |
2.77 |
21.6 |
2.96 |
770*670*25 |
5.2 |
KS-M55W |
55 |
18 |
3.05 |
21.6 |
3.26 |
770*670*25 |
5.2 |
KS-M60W |
60 |
18 |
3.33 |
21.6 |
3.56 |
770*670*25 |
6.8 |
KS-M70W |
70 |
18 |
3.88 |
21.6 |
4.15 |
770*670*25 |
6.8 |
KS-M75W |
75 |
18 |
4.16 |
21.6 |
4.45 |
1180*540*35 |
7.3 |
KS-M80W |
80 |
18 |
4.44 |
21.6 |
4.75 |
1180*540*35 |
7.3 |
KS-M85W |
85 |
18 |
4.72 |
21.6 |
5.05 |
1180*540*35 |
7.5 |
KS-M90W |
80 |
18 |
5.00 |
21.6 |
5.35 |
1180*540*35 |
7.5 |
KS-M95W |
85 |
18 |
5.27 |
21.6 |
5.63 |
1180*540*35 |
7.8 |
KS-M100W |
100 |
18 |
5.55 |
21.6 |
6.61 |
960*800*35 |
8.5 |
|
| Configuration Relationships between solar panel and Batteries |
| Batteries |
Solar Panel |
1.2V |
1.8V~2V |
1.5V |
2.2V-2.5V |
2.4V |
3.6V~4V |
3.6V |
5.5V-6V |
6V |
9V |
9V |
12V-13.5V |
12V |
17.2~18V |
18V |
24V |
24V |
36V |
36V |
48V |
|
